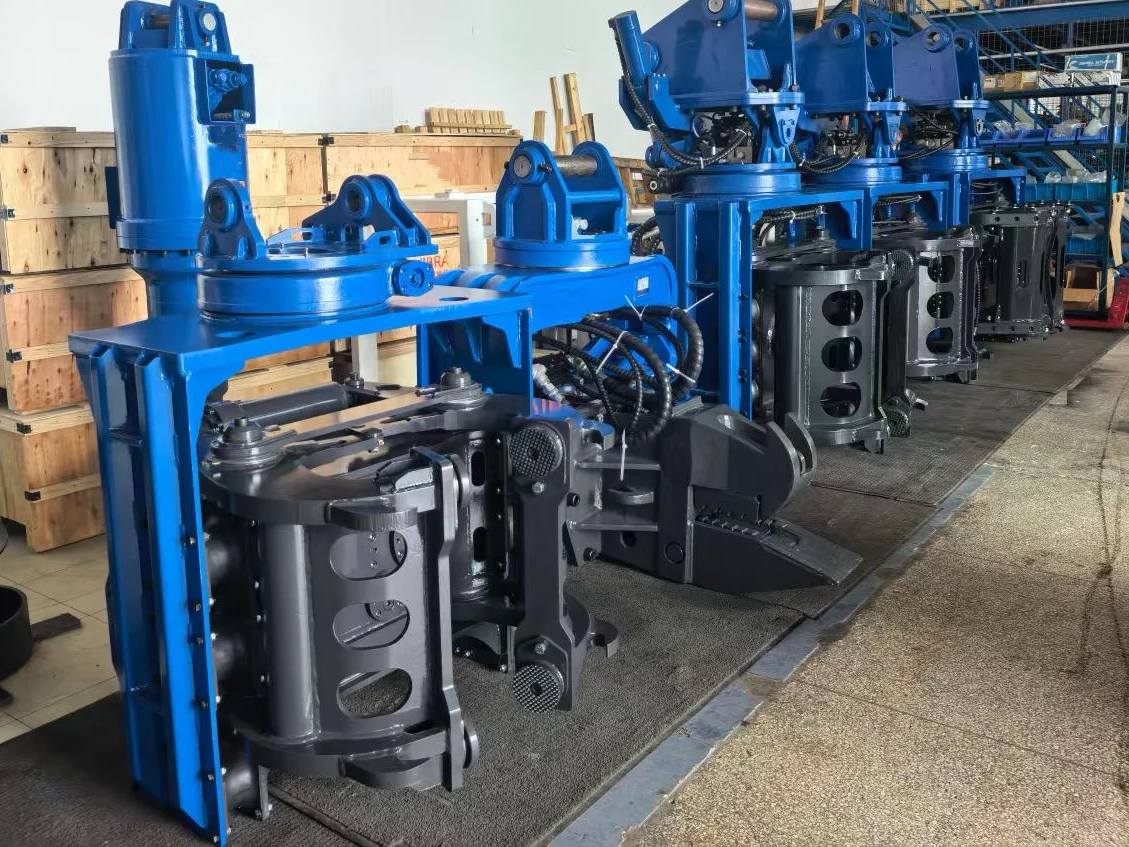

Side Grip Vibratory Hammer
- Eccentric moment： 3.1-7.6 kgm
- Centrifugal force： 310-772 kN
- Frequency： 2300-3100 rpm
- Excavator Class： 15-50 ton
- Side Clamp Force: 335-565 kN
- Bottom Clamp Force: 385-550 kN
- Operation Pressure: 32 bar
- Oil Flow: 130-400 L/min
- Weight: 1950-4050 kg
FEATURES
- Easy installation

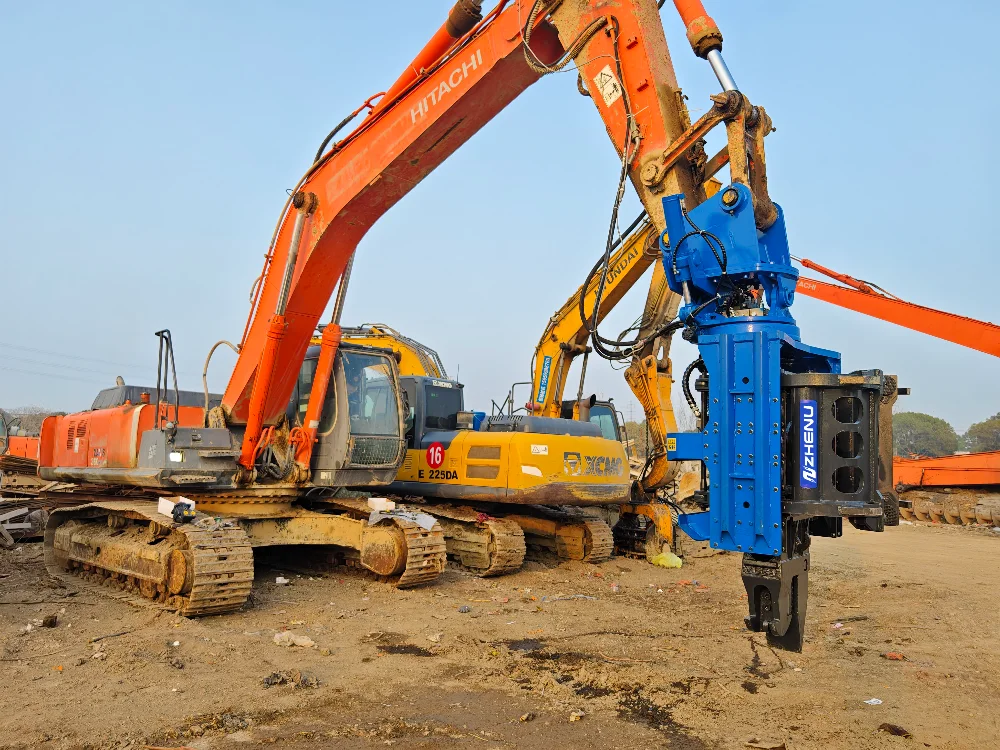

Side Grip Vibro Hammer can be fitted easily and quickly without any modifications required to the excavator and is controlled directly by the excavator operator.
- Best Mobility
Full hydraulic flexible control, the control system is integrated , independent each action. With 360° rotating system and 30° tilt mechanism, ZHENU vibro hammer can be worked in small areas. Side grip sheet pile drivers are capable of handling, pitching, and driving / extracting.
- Reliable Performance
Precise design, reliable performance, core components are imported from famous brands，such as FAG bearing, Parker/ Rexroth motor.
- Wide Application
Depending on your excavator power or project requirements, ZHENU has different sizes and capacity machines. These machines have various types of arms for sheet piling, pipe piling and timber piling.
TECHNICAL DATA
| Model | ZS-150 | ZS-200 | ZS-300 | ZS-400 | ZS-500 |
|---|---|---|---|---|---|
| Eccentric moment(kgm) | 3.1 | 4.6 | 5.6 | 6.6 | 7.6 |
| Centrifugal Force (kn) | 310 | 459 | 558 | 656 | 772 |
| Frequency(rpm) | 2300-3000 | 2300-3000 | 2300-3000 | 2300-3000 | 2300-3100 |
| Side clamp force kn) | 335 | 335 | 385 | 465 | 565 |
| Bottom clamp force kn) | 385 | 385 | 490 | 520 | 550 |
| Operation pressure (bar) | 32 | 32 | 32 | 32 | 32 |
| Oil flow (L/min) | 130-180 | 170-230 | 220-280 | 280-360 | 320-400 |
| Rotation/tilt (°) | 360/±30 | 360/±30 | 360/±30 | 360/±30 | 360/±30 |
| Size (L*W*H) | 1120*1110*1990 | 1220*1260*2150 | 1343*1230*2923 | 1400*1315*3056 | 1460*1395*3310 |
| Weight(kg) | 1950 | 2280 | 3150 | 3870 | 4050 |
| Applicable excavator class (T) | 15-20 | 20-25 | 25-32 | 32-40 | 40-50 |
