| Modle | YC-3 | YC-5 | YC-8 | YC-12 | YC-14 | YC-16 | YC-18 |
| Impact Energy (kNm) | 36 | 60 | 120 | 180 | 210 | 240 | 270 |
| Working Stroke (mm) | 1200 | 1200 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Impact Frequency (bpm) | 80/35 | 80/35 | 70/30 | 70/32 | 70/30 | 70/30 | 70/30 |
| Ram Weight (kg) | 3000 | 5000 | 8000 | 12000 | 14000 | 16000 | 18000 |
| Size L*W*H (mm) | L 4845
W 960 H 1075 |
L 5425
W 960 H 1075 |
L 6800
W 1075 H 1185 |
L 7100
W 1185 H 1300 |
L 7510
W 1185 H 1300 |
L 7760
W 1185 H 1300 |
L 8400
W 1185 H 1300 |
| Weight (kg) | 5800 | 8500 | 12500 | 18000 | 20000 | 22000 | 24000 |
| Power Pack Model | 120P | 200P | 300P | 400P | 400P | 400P | 400P |
YC-5
- Impact Energy： 60 kNm
- Working Strock： 1200 mm
- Impact Frequency： 80/35 bpm
- Weight: 8500 kg
- Ram Weight： 5000 kg
- Size L*W*H: 5425*960*1075 mm
- Power Pack Model： 200 P
DISCRIPTION
YC series hydraulic impact hammer is more suitable for driving small size piles . It is applied widely in building foundation, bridge construction, municipal projects, photovoltaic projects etc. Our hydraulic impact hammer adopts advanced compact-structure hydraulic system. The stroke of the hammer can be steplessly adjusted in the wide designed range. The hammering rate is also adjustable. Hydraulic impact hammer is convenient for operation. Manual mode and automatic mode are optional. It meets the requirement of most types of piling and foundation works , can work in complicated geological conditions.
FEATURES

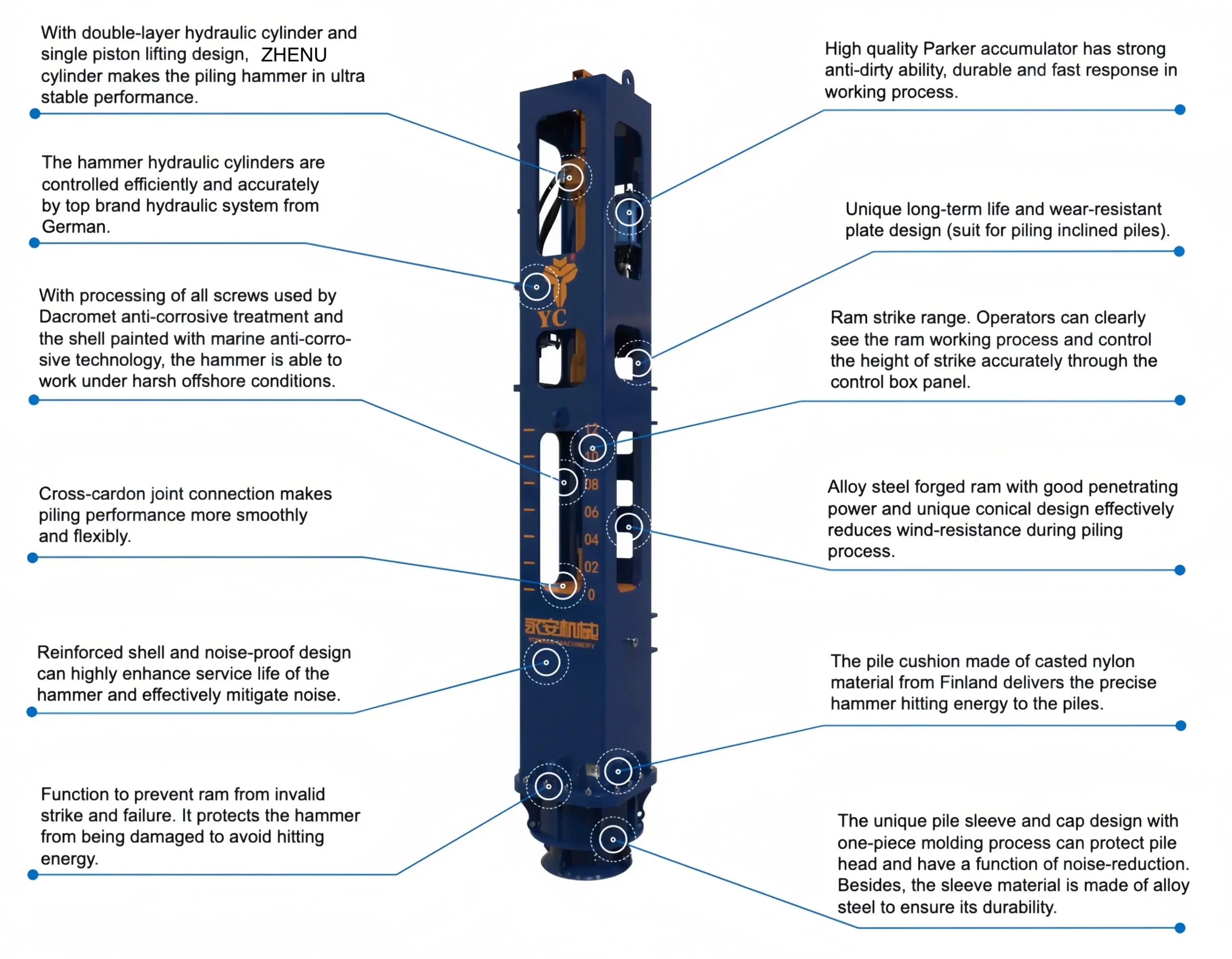

- Double-layer hydraulic cylinder
Double-layer hydraulic cylinder and single piston lifting design make the piling hammer in ultra stable performance.
- Parker accumulator
High quality Parker accumulator has strong anti-dirty ability, durable and fast response in working process.
- Offshore anti-corrosion technology spray
Using USA nano anticorrosion technology and 5+ types of surface treatment makes our products with good performance under offshore harsh conditions with high salt spray.
- Ram strike range
Operators can clearly see the ram working process and control the height of strike accurately through the control box panel.
- Alloy steel forged ram
Alloy steel forged ram with good penetrating power and unique conical design effectively reduces wind-resistance during piling process.
- Customizable pile caps
The unique pile sleeve and cap design with one-piece molding process can protect pile head and have a function of noise-reduction. Besides, the sleeve material is made of alloy steel to ensure its durability.
TECHNICAL DATA
PROJECTS
