| Impact Hammer | YC-80 | YC-110 | YC-120 | YC-130 | YC-150 | YC-180 | YC-230 |
| Impact Energy(KNm) | 1360 | 1870 | 2040 | 2210 | 2550 | 3060 | 3900 |
| Working Stroke(mm) | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 |
| Impact Frequency(bpm) | 60/23 | 60/22 | 60/22 | 55/20 | 55/20 | 55/20 | 55/20 |
| Ram Weight(Kg) | 80000 | 110000 | 120000 | 130000 | 150000 | 180000 | 230000 |
| Size L*W*H(mm) | L 14170
W 2975 H 2180 |
L 11830
W 3230 H 2500 |
L12410
W 3200 H 2500 |
L 12550
W 3260 H 2845 |
L 14000
W 3420 H 2950 |
L 14400
W 3420 H 2950 |
L 16200
W 3420 H 3120 |
| ..............Weight(Kg).............. | ..130000.. | ..165000.. | ..177200.. | ..200000.. | ..244500.. | ..287000.. | ..330000.. |
| Power Pack Model | 1600P | 2600P | 2600P | 2600P | 2400P *2 | 2600P *2 | 3000P*2 |

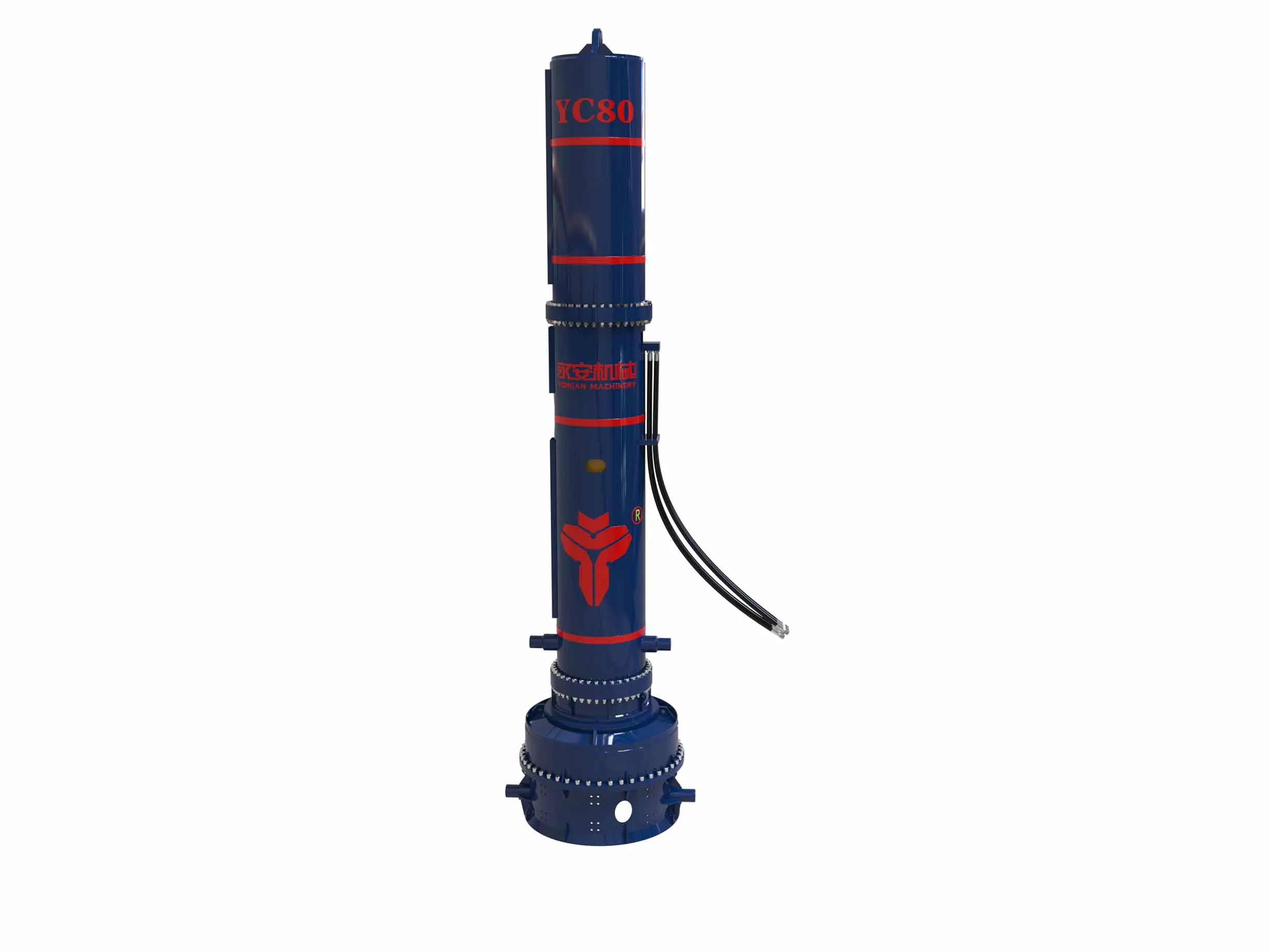

YC-80
- Impact Energy： 1360 kNm
- Working Strock： 1700 mm
- Impact Frequency： 60/23 bpm
- Weight: 130000 kg
- Ram Weight： 80000 kg
- Size L*W*H: 14170*2975*2180 mm
- Power Pack Model： 1600 P
DISCRIPTION
YC series hydraulic impact hammer is more suitable for driving small size piles . It is applied widely in building foundation, bridge construction, municipal projects, photovoltaic projects etc. Our hydraulic impact hammer adopts advanced compact-structure hydraulic system. The stroke of the hammer can be steplessly adjusted in the wide designed range. The hammering rate is also adjustable. Hydraulic impact hammer is convenient for operation. Manual mode and automatic mode are optional. It meets the requirement of most types of piling and foundation works , can work in complicated geological conditions.
FEATURES
- Double-layer hydraulic cylinder
Double-layer hydraulic cylinder and single piston lifting design make the piling hammer in ultra stable performance.
- Parker accumulator
High quality Parker accumulator has strong anti-dirty ability, durable and fast response in working process.
- Offshore anti-corrosion technology spray
Using USA nano anticorrosion technology and 5+ types of surface treatment makes our products with good performance under offshore harsh conditions with high salt spray.
- Ram strike range
Operators can clearly see the ram working process and control the height of strike accurately through the control box panel.
- Alloy steel forged ram
Alloy steel forged ram with good penetrating power and unique conical design effectively reduces wind-resistance during piling process.
- Customizable pile caps
The unique pile sleeve and cap design with one-piece molding process can protect pile head and have a function of noise-reduction. Besides, the sleeve material is made of alloy steel to ensure its durability.
TECHNICAL DATA

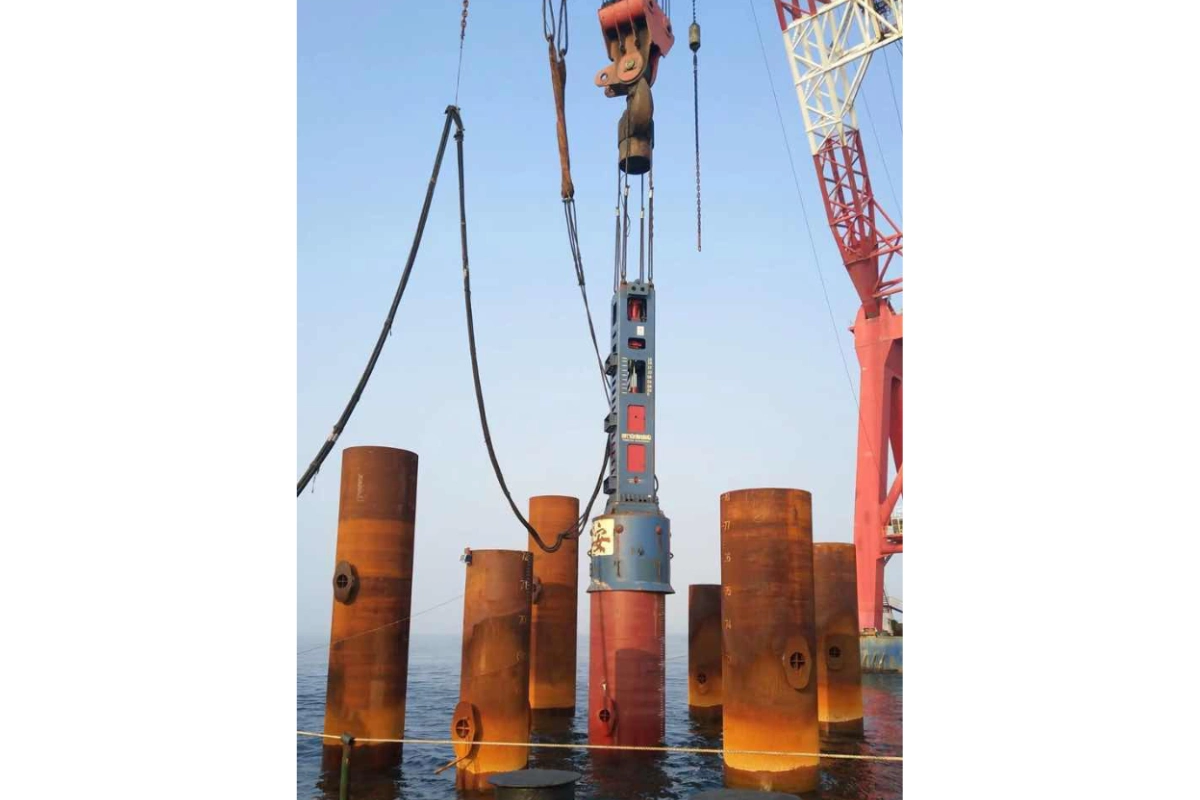

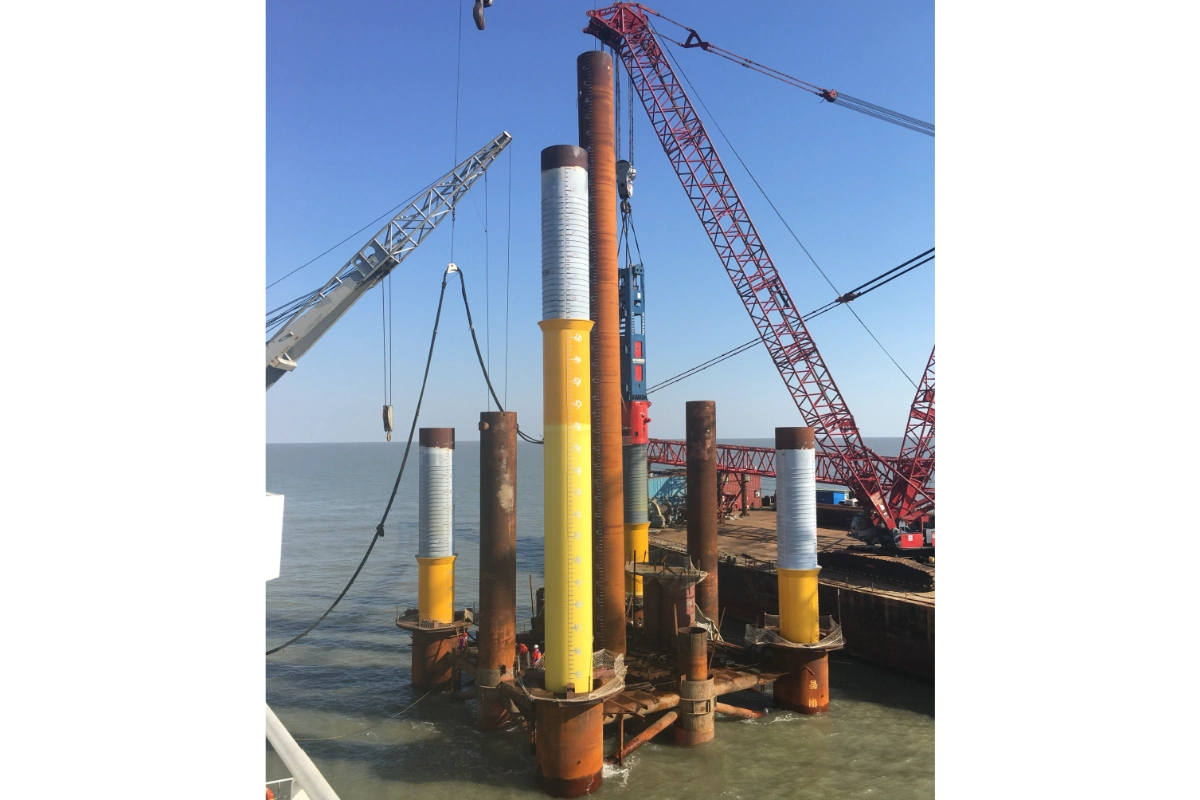

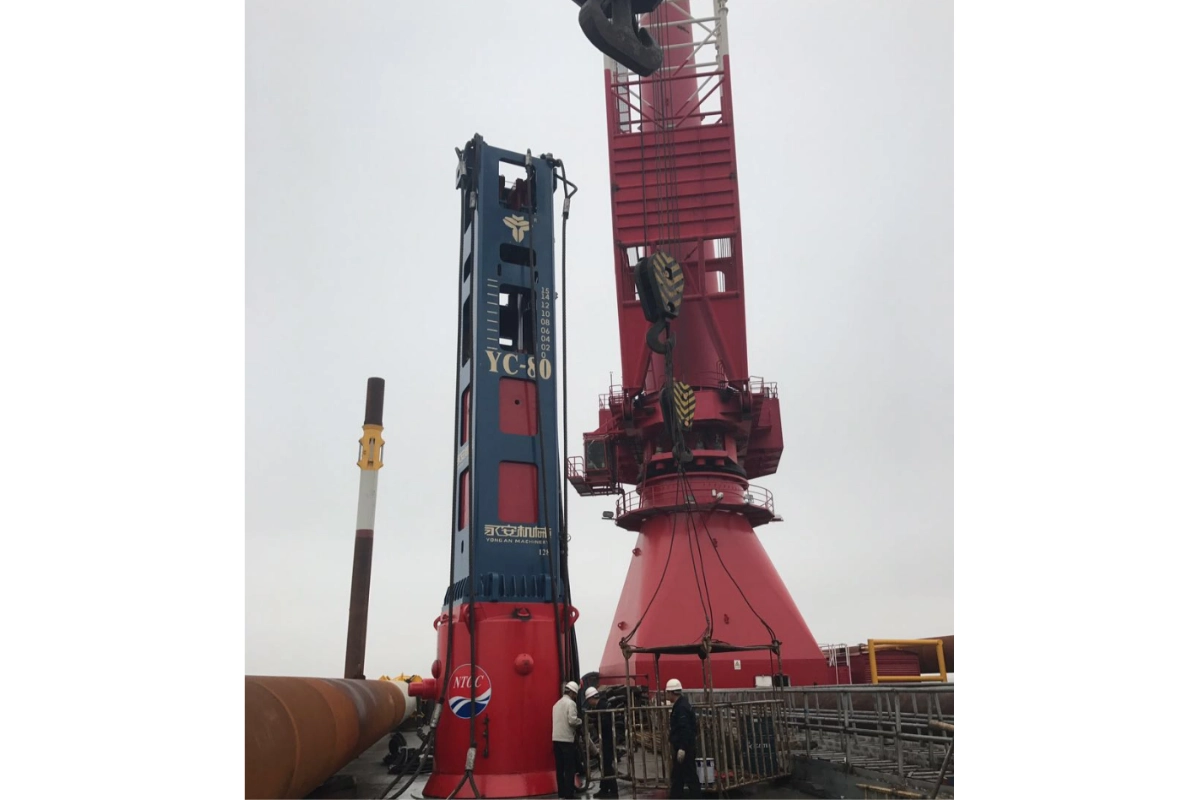

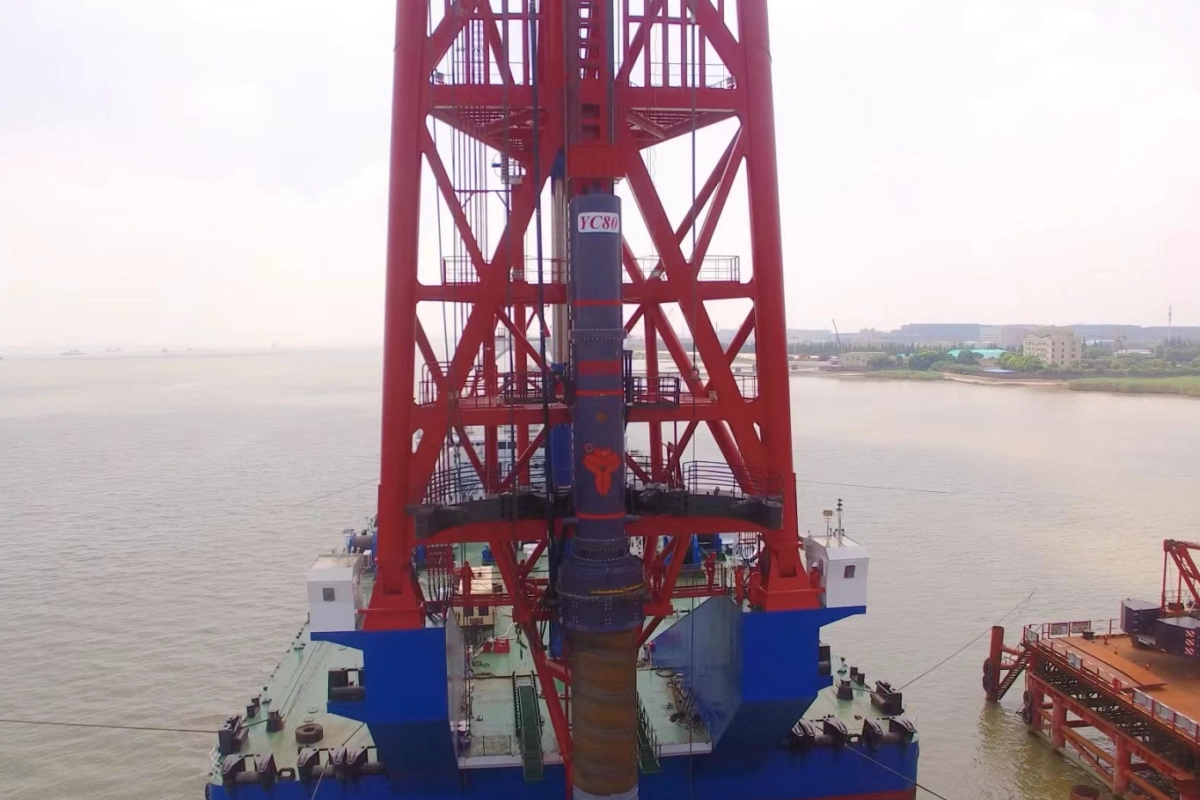

PROJECTS
Premier Pile Hammer Manufacturer
Core Components Procurement and Inspection
• Core Components Procurement
Zhenu's vibro hammers insist on using high-quality components from international first-line brands, such as FAG bearings, Rexroth hydraulic systems, and CAT or Cummins engines.
• Quality Inspection
Conduct strict quality inspections on the purchased raw materials, including chemical composition analysis, mechanical property testing, dimensional accuracy measurement, etc.
Component Processing and Manufacturing
• Machining
Use CNC lathes, milling machines, drilling machines and other equipment to perform cutting processing on metal components to ensure dimensional accuracy and surface quality.
• Heat Treatment
Perform heat treatment processes such as quenching and tempering on key components to improve the hardness, strength and wear resistance of the components.
• Surface Treatment
Perform surface treatments such as electroplating and spraying on components to improve the corrosion resistance and appearance quality of the components.
Assembly and Commissioning
• Component Assembly
Assemble the processed components according to the assembly drawing to form various components of the hydraulic vibratory hammer, such as the hydraulic power unit, vibrator, fixture, etc.
• Final Assembly and Commissioning
Assemble all components as a whole, connect hydraulic pipelines, electrical circuits, etc., and then conduct commissioning.
Quality Inspection and Testing
• Appearance Inspection
Inspect the appearance of the hydraulic vibratory hammer to ensure that there are no obvious defects on the surface, the paint is uniform, and the markings are clear.
• Performance Testing
Conduct comprehensive performance tests on the hydraulic vibratory hammer, including testing parameters such as vibration frequency, amplitude, exciting force, and hydraulic system pressure.
• Reliability Test
Conduct reliability tests on the hydraulic vibratory hammer, and simulate actual working conditions for long-term operation tests.
Worldwide Shipping
• Delivery time guarantee
40 years of accumulation have enabled us to establish a solid strategic partnership with upstream core suppliers such as steel and hydraulic systems, ensuring a stable and timely supply of raw materials. For standard models, we have established a strong inventory of core components and complete machines, which can achieve "order-to-ship" and greatly shorten your waiting period.
•Specialization
We use fumigated wooden boxes that comply with IPPC/ISPM15 international standards. They are strong and durable and can effectively withstand the rough loading and unloading and complex environment during long-distance shipping. From packaging to customs declaration, every detail complies with international standards.
•Visualization & Traceability
We support customers to be able to see key production milestones and factory status, as well as the latest location, dynamic trajectory and estimated arrival time of the goods. Our logistics managers will closely monitor the status of your goods and proactively update you at key nodes (such as departure, arrival, and transit) to give you peace of mind.
